Understanding the Cartoning Challenge for Nutritional Stick Packs
Manufacturers of nutritional stick packs and comparable sachet-style products face a recurring set of operational pressures: rising manual cartoning labor costs, quality risks stemming from missed or misplaced products and leaflets, and the difficulty of keeping upstream and downstream packaging steps coordinated within a continuous production line. These pain points are common across pharmaceutical, chemical, electronics, and food industries wherever sachets and similarly formatted items require secondary cartoning. For producers of nutritional sticks specifically, the packaging line must reliably handle small, lightweight sachet formats while maintaining accuracy at commercial output speeds.
The Case for Automated Cartoning in Nutritional Stick Packaging
Guangdong Rich Packing Machinery Co., Ltd., operating under the brand name Rich Packing, positions its cartoning equipment as a manufacturer response to exactly these pressures. The company describes itself as a manufacturer of automatic cartoning machinery that combines optical, electronic, pneumatic, and mechanical technologies to raise automation levels and reduce labor costs. Within this product category, the RQ-ZH-120L Automatic Cartoning Machine is positioned for small and medium production volumes and GMP-compliant environments, making it relevant to operations that need consistent, regulation-aware output without the footprint or complexity of large-scale industrial lines.
Inside the RQ-ZH-120L Automatic Cartoning Machine
The RQ-ZH-120L is built as a fully automatic, high-speed vertical cartoning machine that completes the entire process from feeding through carton forming, conveying, leaflet folding, inspection, product insertion, batch printing, tongue closing, carton sealing, and missing-product rejection in a single unit. This end-to-end design directly addresses the labor-cost and quality-risk concerns that manual cartoning introduces.
Dual Servo Feeding for Speed and Stability
The machine’s feeding system uses dual servo motors, allowing it to reach speeds of 125 cartons per minute. According to the manufacturer, this dual-servo configuration performs faster and more stably than a one-servo-motor setup, which matters for producers running continuous batches of nutritional stick packs where line stoppages translate directly into lost throughput.
Dual Inspection for Quality Assurance
Quality control is built into the process at two distinct points: verification of product and leaflet before insertion, and a second check once the item is inside the carton. This dual inspection methodology is designed to detect incorrect quantities and improper carton placement, addressing the exact quality risk that manual or single-check systems can miss.
Durable Construction for Extended Service Life
The RQ-ZH-120L is constructed from stainless steel or nickel chrome plating, materials chosen for stable chemical properties that provide corrosion resistance, non-toxicity, and operational safety. Welded areas receive tempering treatment specifically to extend service life, a detail relevant to producers running equipment continuously over long production cycles.
Dual Clutch Protection
A dual clutch design activates bidirectional protection if the main motor becomes overloaded or the leaflet folder faults. This protects both the equipment and the operator, reducing downtime risk associated with mechanical faults during high-speed operation.
High-Level Intelligence and Visualized Monitoring
Dense inspection points are positioned at leaflet feeding, leaflet counting, product loading, product counting, and carton positioning, giving operators complete process and final-result monitoring. Faults and counting data are fully visualized and viewable on the touch screen at any time, which the manufacturer notes eases maintenance. All components are also clearly numbered to support convenient routine servicing.
Technical Specifications Tailored to Diverse Formats
For teams evaluating whether the RQ-ZH-120L fits nutritional stick pack formats, the published technical parameters offer relevant reference points. The machine operates across a speed range of 35 to 125 cartons per minute, with total power of 1.10 kW and a power supply of 220V/380V at 50Hz. Air pressure requirements are ≥0.6 MPa, with air consumption between 120 and 160 L/min. Carton size accommodation ranges from 65-150mm in length, 35-85mm in width, and 12-45mm in height, with carton weight tolerance of 240-360g/㎡. Leaflet handling covers open sizes from 78mm to 250mm in length and 85mm to 170mm in width, supporting 1 to 4 folds, with a weight range of 60 g/m² to 70 g/m². The machine itself measures 2,150mm × 1,140mm × 1,800mm and weighs approximately 1,500 kg, while occupying roughly 3㎡ of floor space — a factor the manufacturer notes eases transport and installation.
The equipment’s internal configuration draws on components from established suppliers, including Panasonic servo motors and drivers, an SEW main motor, a Danfoss frequency converter, a Siemens PLC, Omron sensors and switches, SMC pneumatic solenoid valves and cylinders, a SICK proximity switch, LEUZE photoelectric switches, a Schneider emergency stop button, and a Kögel cylinder, among other named parts. The manufacturer states that renowned electrical components, including brands such as Baker and Siemens, are used to help ensure reliable quality, supporting stable performance suitable for continuous 24-hour production.
Seamless Integration Into Production Lines

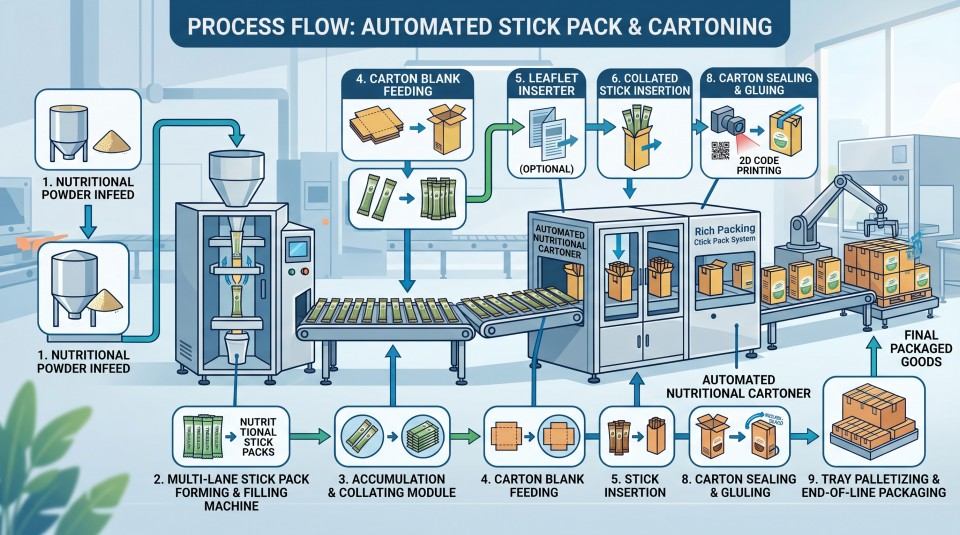

Rather than functioning only as a standalone unit, the RQ-ZH-120L is designed to connect with end sealers, blister packaging machines, counting and bottling lines, cellophane overwrapping machines, strapping machines, and other cartoning machines according to production requirements. For nutritional stick pack manufacturers running multi-stage lines — where sachets are formed, counted, and then boxed — this platform compatibility allows the cartoning stage to be incorporated into a coordinated, continuous workflow rather than operating as an isolated bottleneck.
Industry Adaptability Across Sectors
The RQ-ZH-120L’s industry adaptation spans pharmaceutical cartoning for blister packs, bottles, and tubes under GMP compliance; chemical cartoning of tubes, ointments, and sachets; electronics cartoning of items such as electronic cigarettes; and food cartoning of sachets and comparable packaged products. This last category is directly relevant to nutritional stick packs, which share the sachet-style format and dimensional characteristics the machine is built to handle, provided the specific stick pack and carton dimensions fall within the machine’s stated size and weight tolerances.
Why Guangdong Rich Packing Machinery Co., Ltd.
Taken together, the company’s stated value proposition centers on fully automatic cartoning from feeding through sealing and missing-product rejection — reducing manual labor, improving inspection accuracy, and enabling integration into a coordinated production line. For businesses packaging nutritional sticks or other sachet-format products, the combination of dual servo feeding, dual inspection, corrosion-resistant construction, dual clutch protection, and visualized fault monitoring represents a documented set of engineering choices aimed at the specific labor-cost and quality-control challenges that manual or less-integrated cartoning approaches tend to encounter. Companies evaluating cartoning solutions for nutritional stick packs can review the RQ-ZH-120L’s published specifications directly against their own product dimensions, leaflet requirements, and line integration needs to determine fit. Guangdong Rich Packing Machinery Co., Ltd. can be reached through its official channels at http://www.richpacking.cn for further technical detail specific to a given production scenario.
